AC PSC Motor- 700
Model #:
700

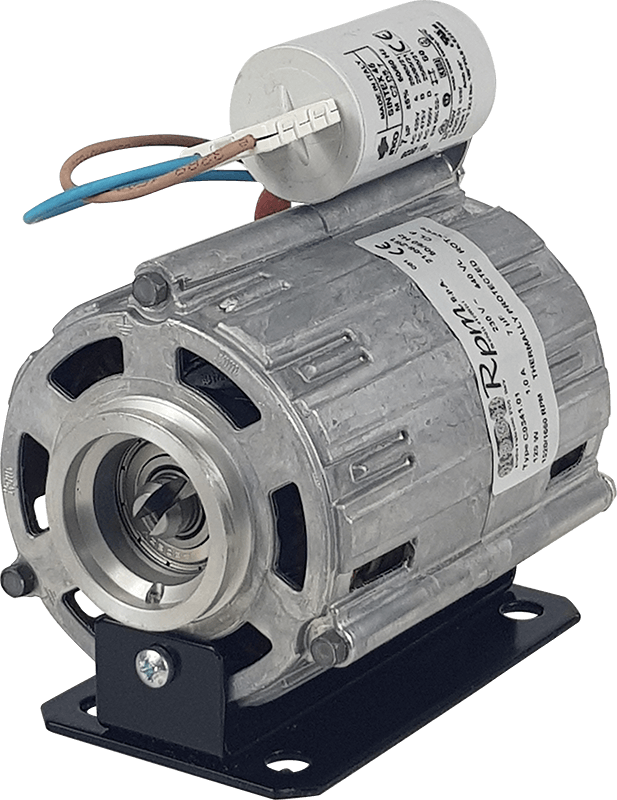

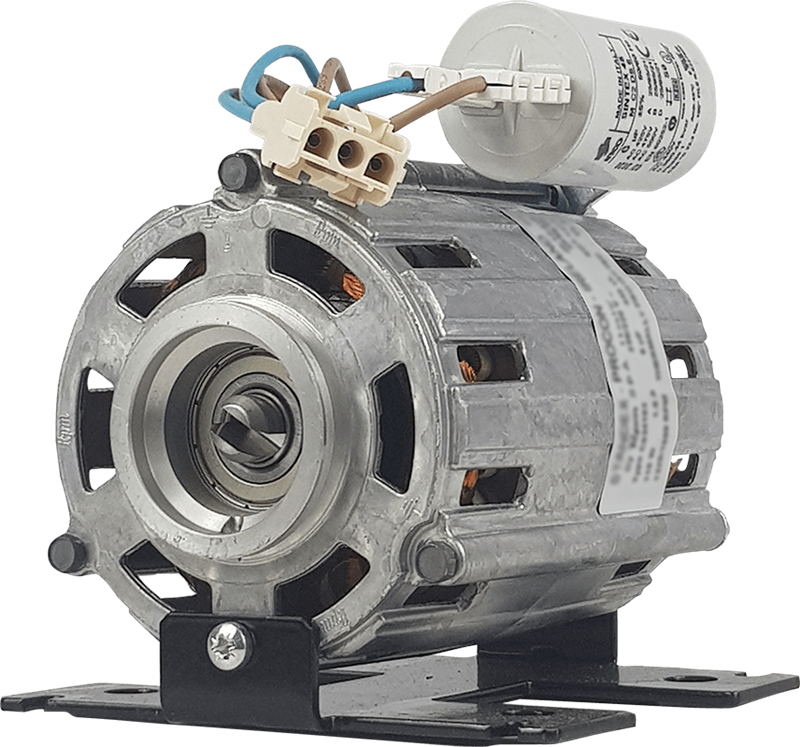

PSC Clamp-On Motor, 230VAC, 50/60Hz, 0.15hp (110W)
$90.00 / Piece $100.00 / Piece
Typical Lead Time: 60 Days
- PSC Motor
- Clamp-On Mounting type to fit a wide range of PROCON Pumps
- Manufactured to be robust and reliable for a wide range of industries and applications
- 230VAC, 50/60Hz, 0.15hp (110W)
Technical Information
Flow Rate GPH
50GPH (150LPH)
Flow Rate LPH
45LPH
Agency Approvals
UL & CE
Integrated Strainer
Yes
Product Weight
6.83lb (3.1Kg)
Displacement
0.98 across speed range
Operating Range
Max Operating Pressure
30psi
Max Static Pressure PSI
100psi
Max Discharge Pressure
90psi
Max Fluid Viscosity
100cp
Max Sound Level
60dB(a)
Motor Performance
TestFacet
Testzeroone
Motor Speed 2
1600RPM
Speed
1320RPM
Power (hp)
0.15
Voltage
230V
PowerW1
20W
Motor Voltage 2
0.15
Motor Current
1A
AC/DC
AC
Motor Mount Type
Clamp-On
Motor Design
IMB3
Protection
IP20
Motor Insulation
F
Frequency
50/60Hz
Motor Type
PSC
Cooling Type
No Cooling
Phase
Single Phase
Power (W)
110W
Motor Built In Controller
Yes
Motor Capacitor
6?F
Motor Poles
4
Capacitor Voltage Rating
440VAC
Voltage1
24V
Speed1
1320RPM
