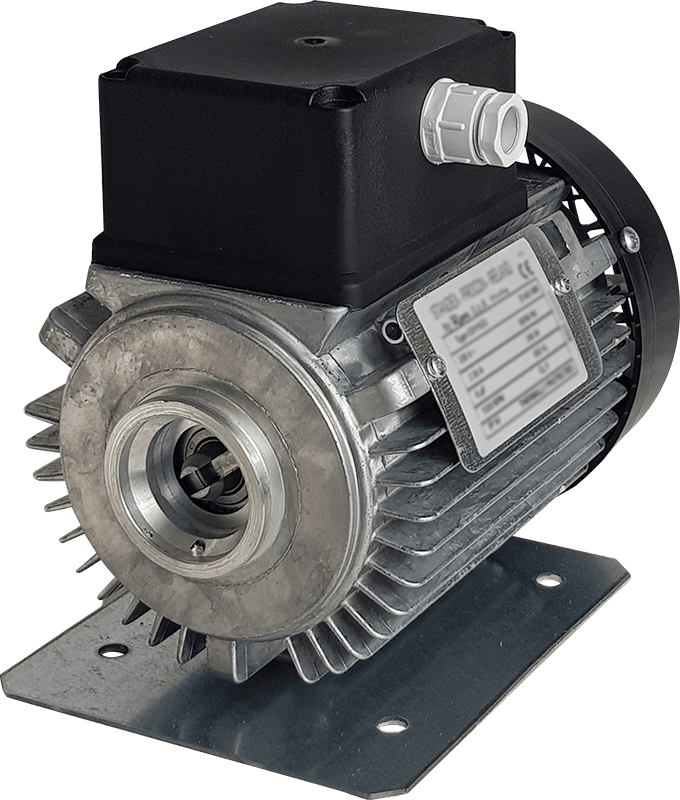

AC PSC Motor- 717

Model #: 717
PSC Clamp-On Motor, 230VAC, 50/60Hz, 0.33hp (245W)
AC PSC Motor- 717
Agency logo
Agency logo

Please email [email protected] for price and availability for this item.

Typical Lead Time: 60 Days

Delivery and Return Information

Demo (20)
  • PSC Motor
  • Clamp-On Mounting type to fit a wide range of PROCON Pumps
  • Manufactured to be robust and reliable for a wide range of industries and applications
  • 230VAC, 50/60Hz, 0.33hp (245W)
    • Technical Information
    Flow Rate GPH 50GPH (150LPH)
    Agency Approvals UL & CE
    Product Weight 11.31lb (5.13Kg)
    Operating Range
    Max Sound Level 60dB(a)
    Motor Performance
    Speed 1320RPM
    Power (hp) 0.33
    Voltage 230V
    Motor Voltage 2 0.33
    Motor Current 2.35A
    AC/DC AC
    Motor Mount Type Clamp-On
    Motor Design IMB3
    Protection IP54
    Motor Insulation F
    Frequency 50/60Hz
    Motor Type PSC
    Cooling Type External Fan Cooled
    Phase Single Phase
    Power (W) 245W
    Motor Capacitor 6?F
    Motor Poles 4
    Capacitor Voltage Rating 450VAC
