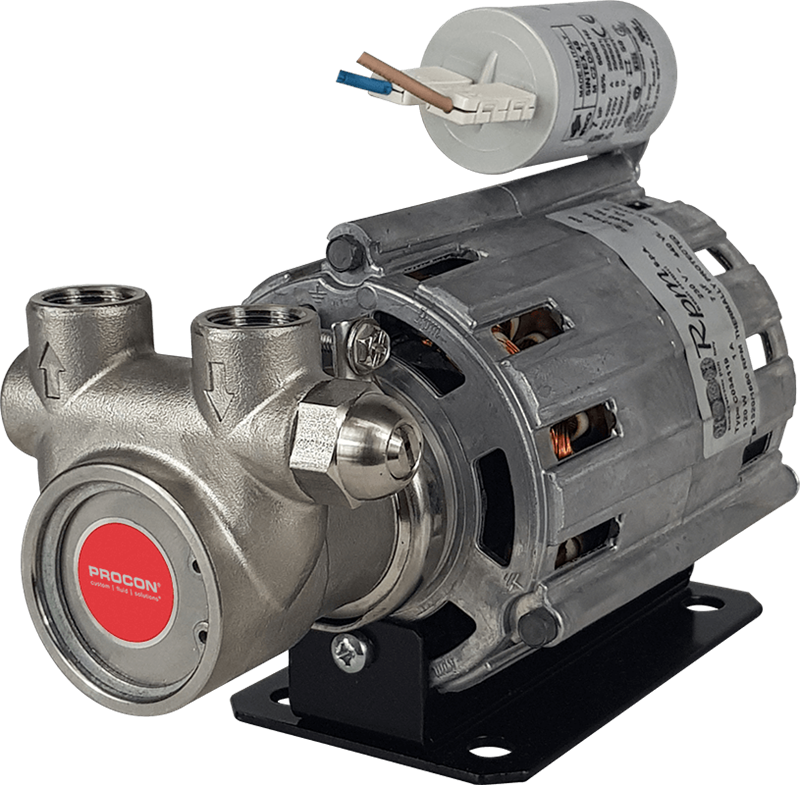

Rotary Vane Pump/Motor Assembly Co 207- 712A035F11CB724

Model #: 712A035F11CB724
Rotary Vane Stainless Steel Pump/Motor Assembly Co 207- 35GPH (100LPH), EPDM/Nitrile, Balanced- External adjust- with PSC Motor 230VAC, 50/60Hz, 0.15hp (110W)
Rotary Vane Pump/Motor Assembly Co 207- 712A035F11CB724
Agency logo
Agency logo

Please email [email protected] for price and availability for this item.

Typical Lead Time: 60 Days

Delivery and Return Information

Demo (10)
  • Consistent flow rate across variable pressures
  • Self-priming (water) and maintenance-free with low vibration and pulsation characteristics
  • Internal Relief Valve Balanced- External adjust configuration
  • Stainless Steel Housing Material
  • G 3/8" Inlet and Outlet Connections
  • Constructed with EPDM/Nitrile Elastomers
  • Flowrate of 35GPH (100LPH)*
  • Fluid Operating Temperature of between -4°F to 180°F (-20°C to 82°C)
  • PSC Motor 230VAC, 50/60Hz, 0.15hp (110W)

    • * GPH rating at 1725RPM/60Hz and LPH rating at 1450RPM/50Hz
    Technical Information
    Flow Rate GPH 35GPH
    Material Stainless Steel
    Flow Rate LPH 100LPH
    Mounting Type Clamp-On
    Standard Port G 3/8"
    Agency Approvals NSF STD. 169 Listed
    Elastomer EPDM/Nitrile
    Seal Type Non Balances Ceramic/Carbon
    Rotation Clockwise
    ValveConfiguration Balanced- External adjust
    Drive Configuration Double Flat
    Product Weight 8.56lb (3.88Kg)
    Valve Type Bypass- Ultem
    Operating Range
    Min Operation Fluid Temperature -4°F
    Relief Valve Set Pressure Range 100 to 150psi (7 to 10 BAR)
    Max Operating Pressure 100psi
    Max Static Pressure PSI 100psi
    Max Operation Fluid Temperature 180°F
    Max Discharge Pressure 250psi
    Max Fluid Viscosity 100cp
    Wet Suction Lift 6.6ft
    Dry Suction Lift 3.3ft
    Max Sound Level 60dB(a)
    MinSpeed 1000RPM
    Max Speed 2400RPM
    Fluid Acidity 2pH
    Motor Performance
    Motor Speed 2 1680RPM
    Speed 1350RPM
    Power (hp) 0.15
    Voltage 230V
    Motor Voltage 2 0.15
    Motor Current 1A
    AC/DC AC
    Motor Mount Type Clamp-On
    Motor Design IMB3
    Protection IP20
    Motor Insulation B
    Frequency 50/60Hz
    Motor Type PSC
    Cooling Type No Cooling
    Phase Single Phase
    Power (W) 110W
    Motor Capacitor 6.3?F
    Motor Poles 4
    Capacitor Voltage Rating 450VAC
