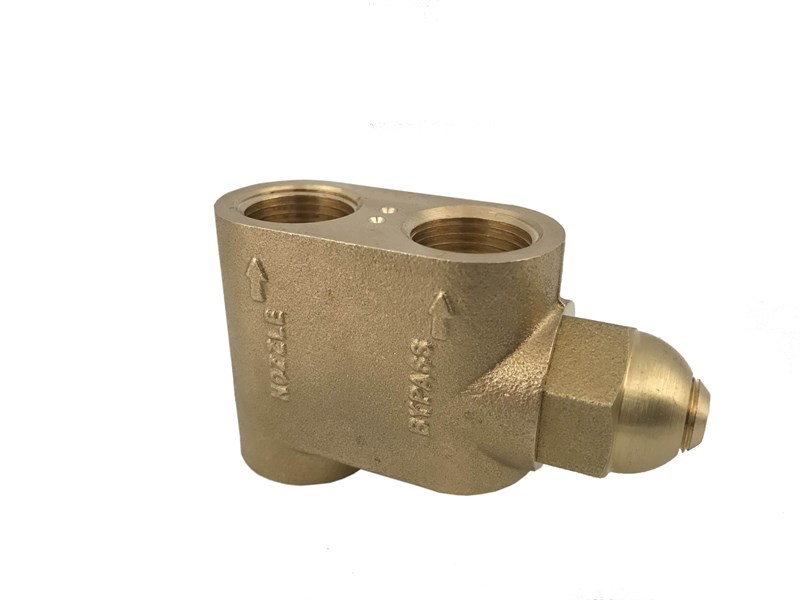

Brass External Bypass Valve- BPV011035RBC

Model #: BPV011035RBC
External Bypass Valve Brass, Fluorocarbon, Standard-Non External adjust Relief Valve
Brass External Bypass Valve- BPV011035RBC

$61.29 / Piece

Typical Lead Time: 20 Days

Delivery and Return Information

Demo (20)
  • Regulates system pressure by diverting a portion of the flow
  • Valve can be set between 60 to 99psi (4 to 7 BAR)
  • Compact size with a life of High performance and reliability
    • Technical Information
    Material Brass
    Standard Port NPT 3/8"
    Elastomer Fluorocarbon
    ValveConfiguration Standard-Non External adjust
    Max Operating//Differential Flow Rate 265GPH (800LPH)
    Product Weight 0.51lb (0.23Kg)
    Valve Type Solid- Ultem
    Operating Range
    Min Operation Fluid Temperature -40°F
    Relief Valve Set Pressure Range 60 to 99psi (4 to 7 BAR)
    Max Operating Pressure 60psi
    Max Static Pressure PSI 250psi
    Max Operation Fluid Temperature 350°F
    Max Discharge Pressure 250psi
    Fluid Acidity 6pH
    Motor Performance
