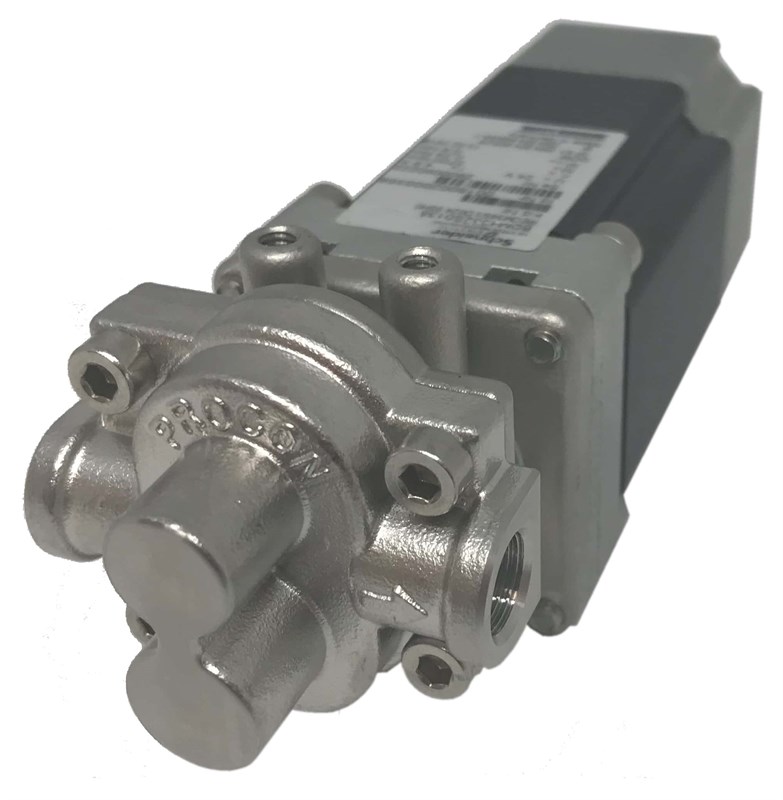

High pressure Micro Gear Pump/Motor Assembly- 51A1BCT2GXX
Model #:
51A1BCT2GXX
Stainless Steel Pump/Motor Assembly, 17GPHEPDM- with DC Brushless Motor, 24V
Please email [email protected] for price and availability for this item.
Typical Lead Time: 60 Days
- Self-priming (water) and maintenance-free with low vibration and pulsation characteristics
- Innovative mechanical seal design requires less sanitation
- Stainless Steel Housing Material
- G 1/8" Inlet and Outlet Connections
- Constructed with EPDM Elastomers
- Flowrate of 17GPH (60LPH)*
- Maximum (Intermittent duty) operating pressure 250psi (17BAR)¹
- Fluid Operating Temperature of between -4°F to 180°F (-20°C to 82°C)
- Special Non-Standard Counter clockwise rotation
- 24VDC Brushless Motor, 0.11hp (80W)
* Flowrate may vary with Viscosity. Flowrate basted on pumps tested with water at room temperature at 14.5psi (1BAR) and at 1500RPM
¹ Maximum operating pressure for Continuous duty is up to 90psi (6BAR), contact a PROCON representative for applications above 90psi (6BAR)
Technical Information
Flow Rate GPH
17GPH
Material
Stainless Steel
Flow Rate LPH
60LPH
Standard Port
G 1/8"
Agency Approvals
NSF STD. 169 Listed
Elastomer
EPDM
Seal Type
Balances Silicon Carbide/Hard Carbon
Integrated Strainer
Yes
Rotation
Counter Clockwise
Internal Component Material
Carbon Fiber PEEK
Product Weight
2.04lb (0.93Kg)
Operating Range
Min Operation Fluid Temperature
-4°F
Max Operating Pressure
250psi
Max Static Pressure PSI
130psi
Max Operation Fluid Temperature
180°F
Max Discharge Pressure
250psi
Max Fluid Viscosity
20000cP
Wet Suction Lift
6.6ft
Dry Suction Lift
3.3ft
Max Sound Level
60dB(a)
MinSpeed
500RPM
Max Speed
4000RPM
Fluid Acidity
2pH
Motor Performance
Motor Speed 2
1600RPM
Speed
3000RPM
Power (hp)
0.11
Voltage
24V
PowerW1
20W
Motor Voltage 2
0.11
Motor Current
4A
AC/DC
DC
Motor Design
IMB3
Protection
IP41
Motor Insulation
B
Motor Type
Brushless
Cooling Type
No Cooling
Power (W)
80W
Motor Built In Controller
Yes
Motor Poles
4
Voltage1
24V
Speed1
1320RPM
