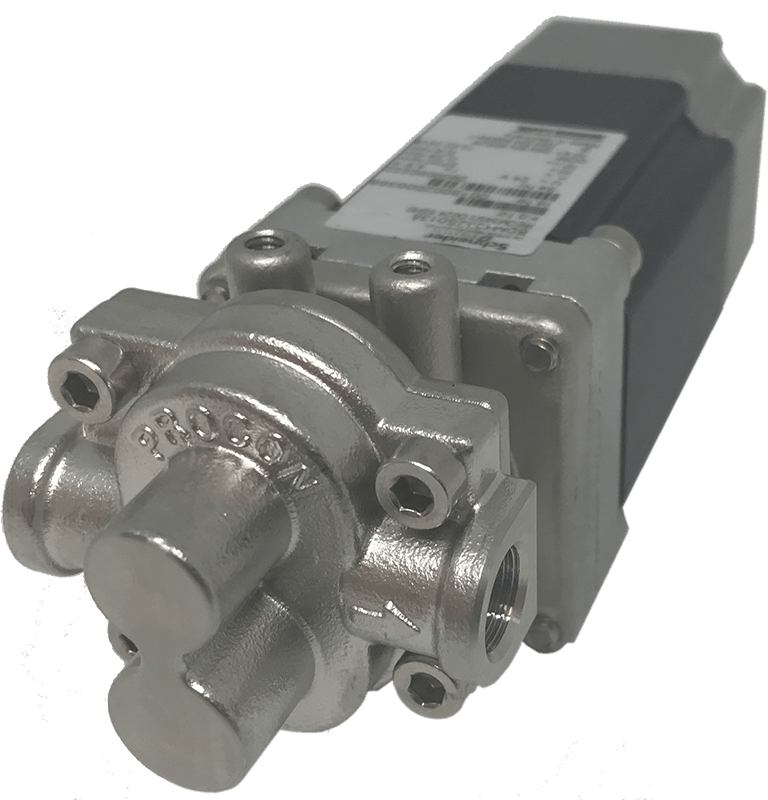

High pressure Micro Gear Pump/Motor Assembly- 54A1BCV2GXX

Model #: 54A1BCV2GXX
Stainless Steel Pump/Motor Assembly, 17GPHFluorocarbon- with DC Brushless Motor, 24V
High pressure Micro Gear Pump/Motor Assembly- 54A1BCV2GXX
Agency logo

Please email [email protected] for price and availability for this item.

Typical Lead Time: 60 Days

Delivery and Return Information

Price is not set for this product. (10)
  • Self-priming (water) and maintenance-free with low vibration and pulsation characteristics
  • Innovative mechanical seal design requires less sanitation
  • Stainless Steel Housing Material
  • G 1/8" Inlet and Outlet Connections
  • Constructed with Fluorocarbon Elastomers
  • Flowrate of 17GPH (60LPH)*
  • Maximum (continuous duty) operating pressure 250psi (17BAR)¹
  • Fluid Operating Temperature of between -4°F to 320°F (-20°C to 160°C)²
  • Special Non-Standard Counter clockwise rotation
  • 24VDC Brushless Motor, 0.11hp (80W)

    • * Flowrate may vary with Viscosity. Flowrate basted on pumps tested with water at room temperature at 14.5psi (1BAR)
    Technical Information
    Flow Rate GPH 17GPH
    Material Stainless Steel
    Flow Rate LPH 60LPH
    Standard Port G 1/8"
    Elastomer Fluorocarbon
    Seal Type Balances Silicon Carbide/Hard Carbon
    Rotation Counter Clockwise
    Internal Component Material Carbon Fiber PEEK
    Product Weight 2.04lb (0.93Kg)
    Operating Range
    Min Operation Fluid Temperature -4°F
    Max Operating Pressure 250psi
    Max Static Pressure PSI 130psi
    Max Operation Fluid Temperature 320°F
    Max Discharge Pressure 250psi
    Max Fluid Viscosity 20000cP
    Wet Suction Lift 6.6ft
    Dry Suction Lift 3.3ft
    Max Sound Level 60dB(a)
    MinSpeed 500RPM
    Max Speed 4000RPM
    Fluid Acidity 2pH
    Motor Performance
    Speed 3000RPM
    Power (hp) 0.11
    Voltage 24V
    Motor Voltage 2 0.11
    Motor Current 4A
    AC/DC DC
    Motor Design IMB3
    Protection IP41
    Motor Insulation B
    Motor Type Brushless
    Cooling Type No Cooling
    Power (W) 80W
