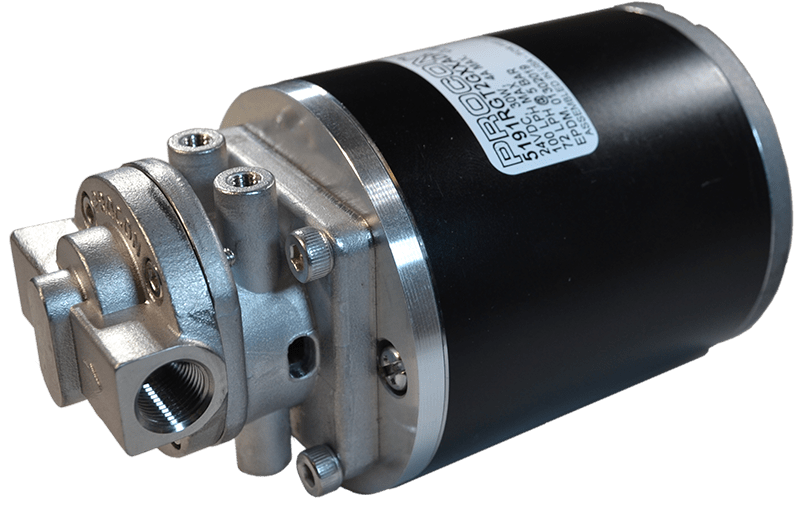

Helical Gear Pump/Motor Assembly- 5191RGT2GXXADP
Model #:
5191RGT2GXXADP
Stainless Steel Pump/Motor Assembly, 20GPHEPDM - with DC Brushed Motor, 24V
Please email [email protected] for price and availability for this item.
Typical Lead Time: 60 Days
- Self-priming (water) and maintenance-free with low vibration and pulsation characteristics
- Innovative mechanical seal design requires less sanitation
- Stainless Steel Housing Material
- G 1/8" Inlet and Outlet Connections
- Constructed with EPDM Elastomers
- Flowrate of 20GPH (80LPH)*
- Maximum (continuous duty) operating pressure 190psi (13BAR)¹
- Fluid Operating Temperature of between -4°F to 180°F (-20°C to 82°C)
- Special Non-Standard Counter clockwise rotation
- 24VDC Brushed Motor, 0.04hp (30W)
* Flowrate may vary with Viscosity. Flowrate basted on pumps tested with water at room temperature at 14.5psi (1BAR)
Technical Information
Flow Rate GPH
20GPH
Material
Stainless Steel
Flow Rate LPH
80LPH
Standard Port
G 1/8"
Agency Approvals
NSF STD. 169 Listed
Elastomer
EPDM
Seal Type
Balances Silicon Carbide/Hard Carbon
Rotation
Counter Clockwise
Internal Component Material
Carbon Fiber PEEK
Product Weight
2.25lb (1.02Kg)
Operating Range
Min Operation Fluid Temperature
-4°F
Max Operating Pressure
190psi
Max Static Pressure PSI
290psi
Max Operation Fluid Temperature
180°F
Max Discharge Pressure
290psi
Max Fluid Viscosity
20000cP
Wet Suction Lift
6.6ft
Dry Suction Lift
3.3ft
Max Sound Level
60dB(a)
MinSpeed
500RPM
Max Speed
4000RPM
Fluid Acidity
2pH
Motor Performance
Speed
4500RPM
Power (hp)
0.04
Voltage
24V
PowerW1
30W
Motor Voltage 2
0.04
Motor Current
3A
AC/DC
DC
Motor Design
IMB3
Protection
IP44
Motor Insulation
F
Motor Type
Brushed
Cooling Type
No Cooling
Power (W)
30W
