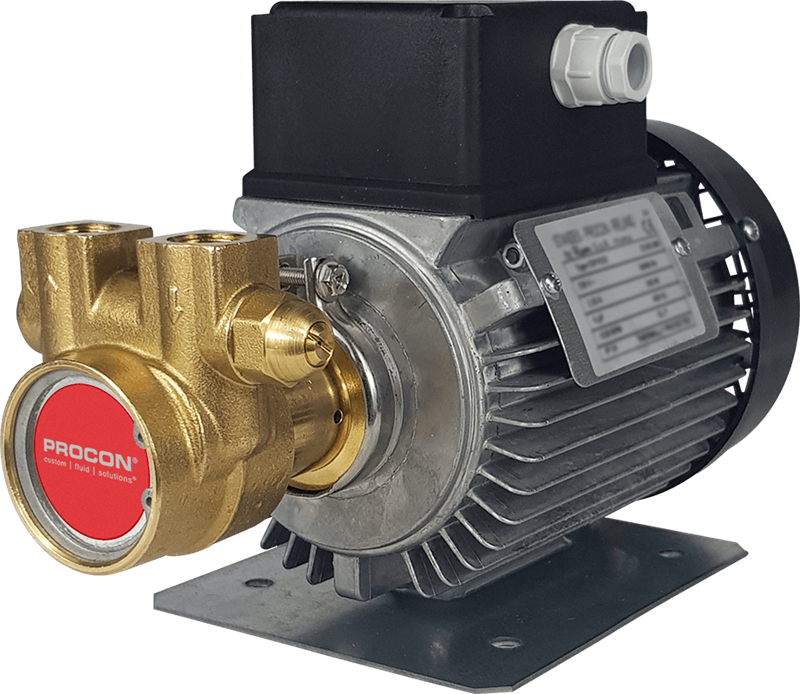

Rotary Vane Pump/Motor Assembly Series 2- 112A140F114A717

Model #: 112A140F114A717
Rotary Vane Brass Pump/Motor Assembly Series 2- 140GPH (425LPH), EPDM/Nitrile, Balanced- External adjust- with PSC Motor 230VAC, 50/60Hz, 0.33hp (245W)
Rotary Vane Pump/Motor Assembly Series 2- 112A140F114A717
Agency logo
Agency logo

Please email [email protected] for price and availability for this item.

Typical Lead Time: 60 Days

Delivery and Return Information

Demo (10)
  • Consistent flow rate across variable pressures
  • Self-priming (water) and maintenance-free with low vibration and pulsation characteristics
  • Internal Relief Valve Balanced- External adjust configuration
  • Brass Housing Material
  • NPT 3/8" Inlet and Outlet Connections
  • Constructed with EPDM/Nitrile Elastomers
  • Flowrate of 140GPH (425LPH)*
  • Fluid Operating Temperature of between -4°F to 160°F (-20°C to 71°C)
  • PSC Motor 230VAC, 50/60Hz, 0.33hp (245W)

    • * GPH rating at 1725RPM/60Hz and LPH rating at 1450RPM/50Hz
    Technical Information
    Flow Rate GPH 140GPH
    Material Brass
    Flow Rate LPH 425LPH
    Mounting Type Clamp-On
    Standard Port NPT 3/8"
    Agency Approvals NSF STD. 169 Listed (1.5% Max Lead)
    Elastomer EPDM/Nitrile
    Seal Type Non Balances Ceramic/Carbon
    Rotation Clockwise
    ValveConfiguration Balanced- External adjust
    Drive Configuration Double Flat
    Internal Component Material Carbon
    Product Weight 13.51lb (6.13Kg)
    Valve Type Solid- Ultem
    Operating Range
    Min Operation Fluid Temperature -4°F
    Relief Valve Set Pressure Range 151 to 250psi (10 to 17.5 BAR)
    Max Operating Pressure 150psi
    Max Static Pressure PSI 100psi
    Max Operation Fluid Temperature 160°F
    Max Discharge Pressure 250psi
    Max Fluid Viscosity 100cp
    Wet Suction Lift 6.6ft
    Dry Suction Lift 3.3ft
    Max Sound Level 60dB(a)
    MinSpeed 1000RPM
    Max Speed 2400RPM
    Fluid Acidity 6pH
    Maximum Total Dissolved Solids (TDS) 5000ppm
    Motor Performance
    Speed 1320RPM
    Power (hp) 0.33
    Voltage 230V
    Motor Voltage 2 0.33
    Motor Current 2.35A
    AC/DC AC
    Motor Mount Type Clamp-On
    Motor Design IMB3
    Protection IP54
    Motor Insulation F
    Frequency 50/60Hz
    Motor Type PSC
    Cooling Type External Fan Cooled
    Phase Single Phase
    Power (W) 245W
    Motor Capacitor 6?F
    Motor Poles 4
    Capacitor Voltage Rating 450VAC
