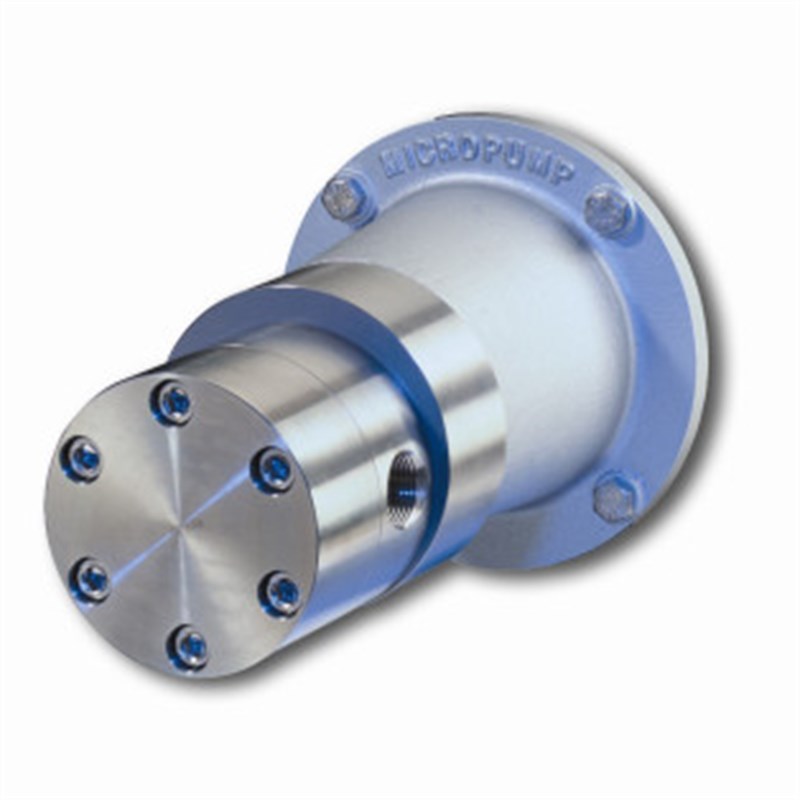

GMH Series

Model #: GMH80403ANAA

The GMH Series pumps can handle tough fluid handling needs without taking up too much space. These cavity style gear pumps provides smooth, pulseless delivery and can withstand system pressures to 103 Bar (1500 psi). Designed using higher displacement gears, these pumps are configured to provide optimum flow with 4-pole motor speeds not exceeding 1750rpm. These designs allow for large plant systems to use common motors across a wide range of products.

GMH Series

Please email [email protected] for price and availability for this item.

Item is Built to Order. Shipment Date will be stated upon Order Confirmation.

Delivery and Return Information

Price is not set for this product.

The GMH Series pumps can handle tough fluid handling needs without taking up too much space. These cavity style gear pumps provides smooth, pulseless delivery and can withstand system pressures to 103 Bar (1500 psi). Designed using higher displacement gears, these pumps are configured to provide optimum flow with 4-pole motor speeds not exceeding 1750rpm. These designs allow for large plant systems to use common motors across a wide range of products.

GMH Series pumps deliver rugged, reliable performance for any high-precision pumping need.

Technical Information
Flow Rate GPH 15GPH
Flow Rate LPH 45LPH
Standard Port NPT 1/8"
Integrated Strainer Yes
Max Operating//Differential Flow Rate 5.5 bar | 80 psi
Displacement Gear Set G25: 12.2 ml/rev
Operating Range
Min Operation Fluid Temperature -4°F
Relief Valve Set Pressure Range 71 to 175psi (5 to 12 BAR)
Max Operating Pressure 30psi
Max Static Pressure PSI 100psi
Max Operation Fluid Temperature 320°F
Max Discharge Pressure 90psi
Max Fluid Viscosity 100cp
Min Fluid Viscocity viscocidade min vai aqui
Motor Performance
Motor Speed 2 1600RPM
Speed 1385RPM
PowerW1 20W
Motor Voltage 2 115V
Motor Design IMB3
Power (W) 30W
Motor Built In Controller Yes
Motor Poles 4
Voltage1 24V
Speed1 1320RPM
