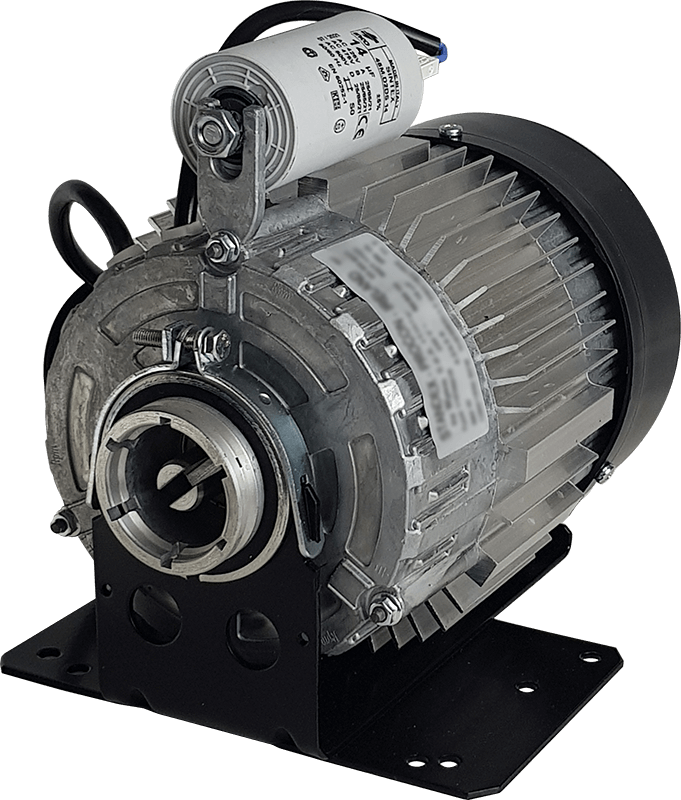

AC PSC Motor- 709

Model #: 709
PSC Clamp-On Motor, 230VAC, 50/60Hz, 0.75hp (560W)
AC PSC Motor- 709
Agency logo
Agency logo

Please email [email protected] for price and availability for this item.

Typical Lead Time: 60 Days

Delivery and Return Information

Demo (10)
  • PSC Motor
  • Clamp-On Mounting type to fit a wide range of PROCON Pumps
  • Manufactured to be robust and reliable for a wide range of industries and applications
  • 230VAC, 50/60Hz, 0.75hp (560W)
    • Technical Information
    Agency Approvals UL & CE
    Product Weight 18.74lb (8.5Kg)
    Operating Range
    Max Sound Level 60dB(a)
    Motor Performance
    Motor Speed 2 1650RPM
    Speed 1360RPM
    Motor Current 2 4A
    Power (hp) 0.75
    Voltage 230V
    Motor Voltage 2 0.75
    Motor Current 4.2A
    AC/DC AC
    Motor Mount Type Clamp-On
    Motor Design IMB3
    Protection IP30
    Motor Insulation F
    Frequency 50/60Hz
    Motor Type PSC
    Cooling Type External Fan Cooled
    Phase Single Phase
    Power (W) 560W
    Motor Capacitor 14?F
    Motor Poles 4
    Capacitor Voltage Rating 450VAC
