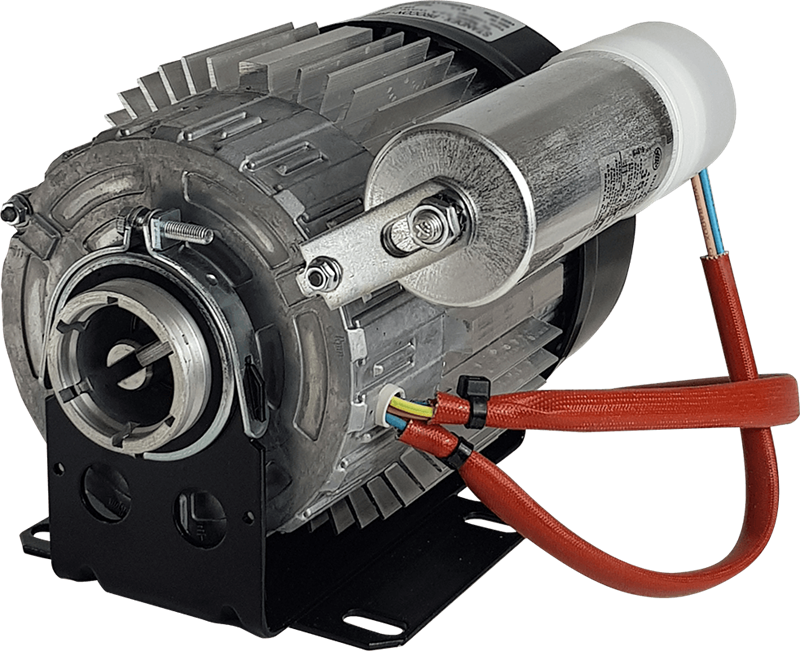

AC PSC Motor- 710
Model #:
710
PSC Clamp-On Motor, 115VAC, 60Hz, 0.75hp (560W)
Please email [email protected] for price and availability for this item.
Typical Lead Time: 60 Days
- PSC Motor
- Clamp-On Mounting type to fit a wide range of PROCON Pumps
- Manufactured to be robust and reliable for a wide range of industries and applications
- 115VAC, 60Hz, 0.75hp (560W)
Technical Information
Agency Approvals
UL & CE
Product Weight
18.25lb (8.28Kg)
Operating Range
Max Sound Level
60dB(a)
Motor Performance
Speed
1660RPM
Power (hp)
0.75
Voltage
115V
Motor Voltage 2
0.75
Motor Current
8.5A
AC/DC
AC
Motor Mount Type
Clamp-On
Motor Design
IMB3
Protection
IP20
Motor Insulation
F
Frequency
60Hz
Motor Type
PSC
Cooling Type
External Fan Cooled
Phase
Single Phase
Power (W)
560W
Motor Capacitor
35?F
Motor Poles
4
Capacitor Voltage Rating
440VAC
Voltage1
115V
