AC PSC Motor- 724

Model #: 724

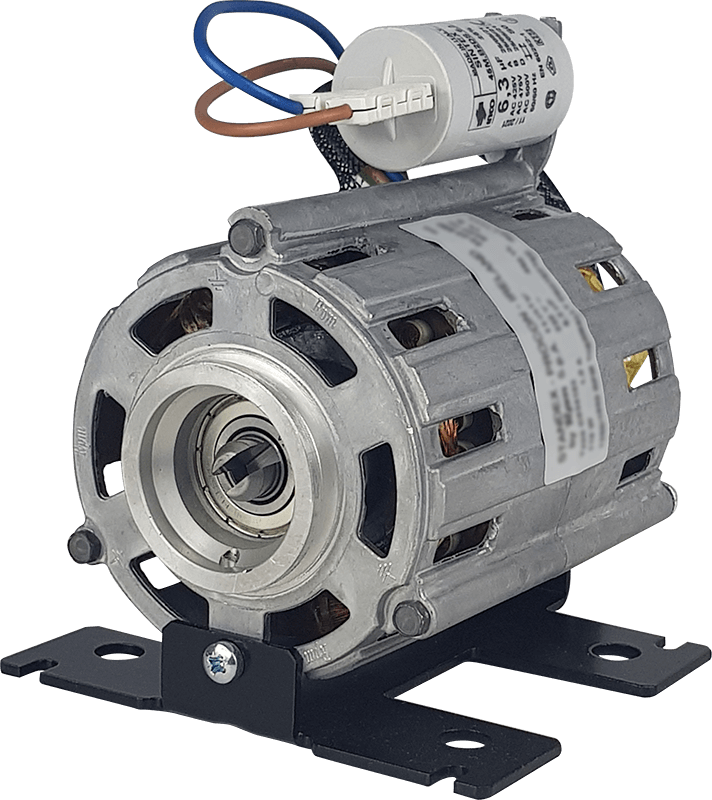

PSC Clamp-On Motor, 230VAC, 50/60Hz, 0.15hp (110W)
AC PSC Motor- 724
Agency logo
Agency logo

Please email [email protected] for price and availability for this item.

Typical Lead Time: 60 Days

Delivery and Return Information

Demo (10)
  • PSC Motor
  • Clamp-On Mounting type to fit a wide range of PROCON Pumps
  • Manufactured to be robust and reliable for a wide range of industries and applications
  • 230VAC, 50/60Hz, 0.15hp (110W)
Technical Information
Agency Approvals UL & CE
Product Weight 6.83lb (3.1Kg)
Operating Range
Max Sound Level 60dB(a)
Motor Performance
Motor Speed 2 1680RPM
Speed 1350RPM
Power (hp) 0.15
Voltage 230V
PowerW1 20W
PowerHp1 0.15
Motor Voltage 2 0.15
Motor Current 1A
AC/DC AC
Motor Mount Type Clamp-On
Motor Design IMB3
Protection IP20
Motor Insulation B
Frequency 50/60Hz
Motor Type PSC
Cooling Type No Cooling
Phase Single Phase
Power (W) 110W
Motor Capacitor 6.3?F
Motor Poles 4
Capacitor Voltage Rating 450VAC
Voltage1 24V
Speed1 1350RPM
