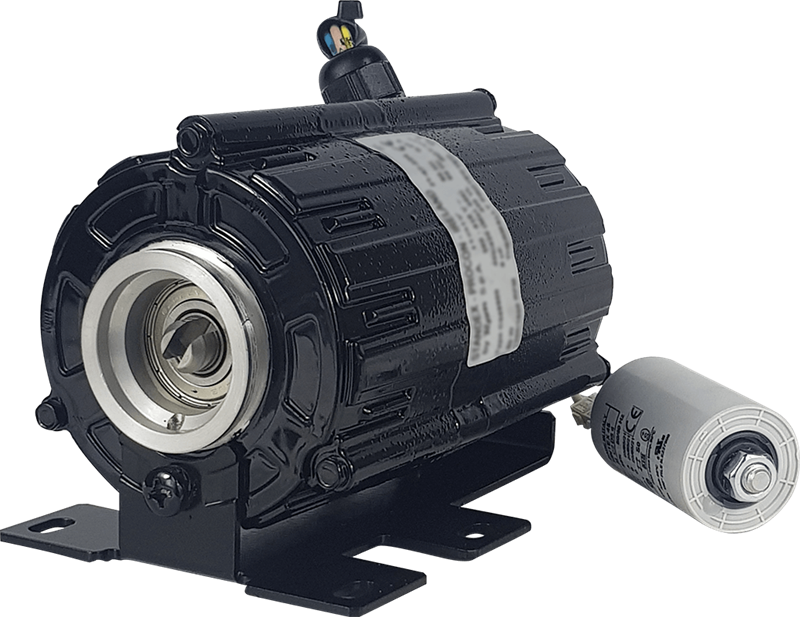

AC PSC Motor- 745

Model #: 745
PSC Clamp-On Motor, 380V/420VAC, 50/60Hz, 0.11hp (80W)
AC PSC Motor- 745
Agency logo
Agency logo

Please email [email protected] for price and availability for this item.

Typical Lead Time: 60 Days

Delivery and Return Information

Demo (10)
  • PSC Motor
  • Clamp-On Mounting type to fit a wide range of PROCON Pumps
  • Manufactured to be robust and reliable for a wide range of industries and applications
  • 380V/420VAC, 50/60Hz, 0.11hp (80W)
    • Technical Information
    Agency Approvals UL & CE
    Product Weight 7.83lb (3.55Kg)
    Operating Range
    Max Sound Level 60dB(a)
    Motor Performance
    Motor Speed 2 1600RPM
    Speed 1300RPM
    Power (hp) 0.11
    Voltage 380V
    Motor Voltage 2 420V
    Motor Current 0.44A
    AC/DC AC
    Motor Mount Type Clamp-On
    Motor Design IMB3
    Protection IP20
    Motor Insulation F
    Frequency 50/60Hz
    Motor Type PSC
    Cooling Type No Cooling
    Phase Single Phase
    Power (W) 80W
    Motor Capacitor 6?F
    Motor Poles 4
    Capacitor Voltage Rating 440VAC
