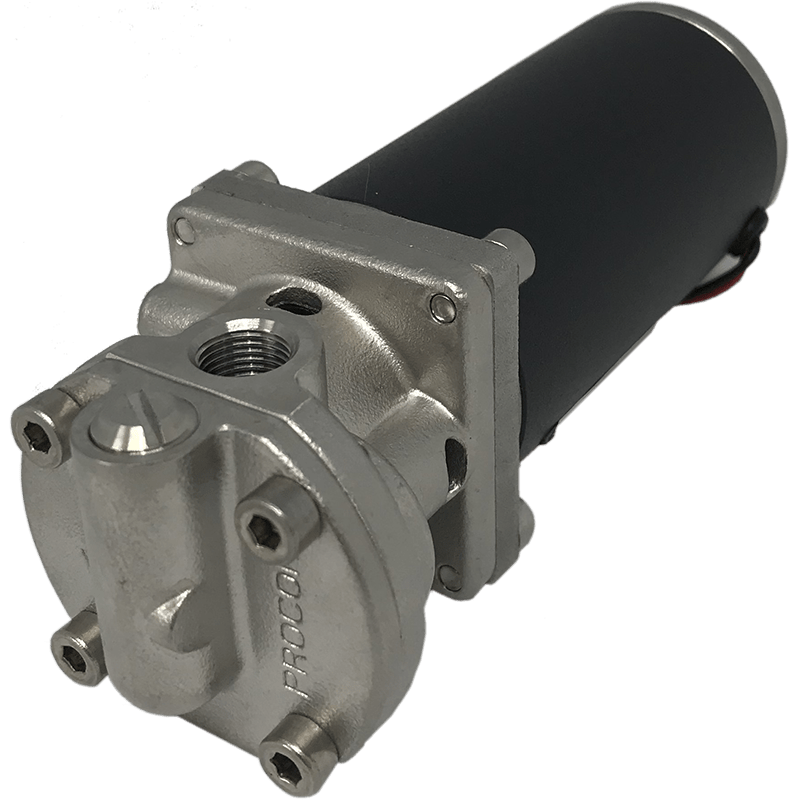

Low pressure Micro Gear Pump- 5191GCT2GXXAAP
Model #:
5191GCT2GXXAAP
Stainless Steel Pump/Motor Assembly, 33GPHEPDM, External adjust Relief Valve- with DC Brushed Motor, 24V
Please email [email protected] for price and availability for this item.
Typical Lead Time: 60 Days
- Self-priming (water) and maintenance-free with low vibration and pulsation characteristics
- Innovative mechanical seal design requires less sanitation
- Internal Relief Valve External adjust configuration
- Stainless Steel Housing Material
- G 1/8" Inlet and Outlet Connections
- Constructed with EPDM Elastomers
- Flowrate of 33GPH (120LPH)*
- Maximum (continuous duty) operating pressure 40psi (3BAR)¹
- Fluid Operating Temperature of between -4°F to 180°F (-20°C to 82°C)
- Special Non-Standard Counter clockwise rotation
- 24VDC Brushed Motor, 0.05hp (40W)
* Flowrate may vary with Viscosity. Flowrate basted on pumps tested with water at room temperature at 14.5psi (1BAR)
Technical Information
Flow Rate GPH
33GPH
Material
Stainless Steel
Flow Rate LPH
120LPH
Standard Port
G 1/8"
Agency Approvals
NSF STD. 169 Listed
Elastomer
EPDM
Seal Type
Balances Silicon Carbide/Hard Carbon
Integrated Strainer
Yes
Rotation
Counter Clockwise
ValveConfiguration
External adjust
Internal Component Material
Carbon Fiber PEEK
Product Weight
1.4lb (0.64Kg)
Valve Type
Solid- Teflon
Operating Range
Min Operation Fluid Temperature
-4°F
Relief Valve Set Pressure Range
30 to 70psi (2 to 5 BAR)
Max Operating Pressure
40psi
Max Static Pressure PSI
60psi
Max Operation Fluid Temperature
180°F
Max Discharge Pressure
90psi
Max Fluid Viscosity
20000cP
Wet Suction Lift
6.6ft
Dry Suction Lift
3.3ft
Max Sound Level
60dB(a)
MinSpeed
500RPM
Max Speed
4000RPM
Fluid Acidity
2pH
Motor Performance
Motor Speed 2
1600RPM
Speed
3400RPM
Power (hp)
0.05
Voltage
24V
PowerW1
20W
Motor Voltage 2
0.05
Motor Current
3A
AC/DC
DC
Motor Design
IMB3
Protection
IP55
Motor Insulation
F
Motor Type
Brushed
Cooling Type
No Cooling
Power (W)
40W
Motor Built In Controller
Yes
Motor Poles
4
Voltage1
24V
Speed1
1320RPM
