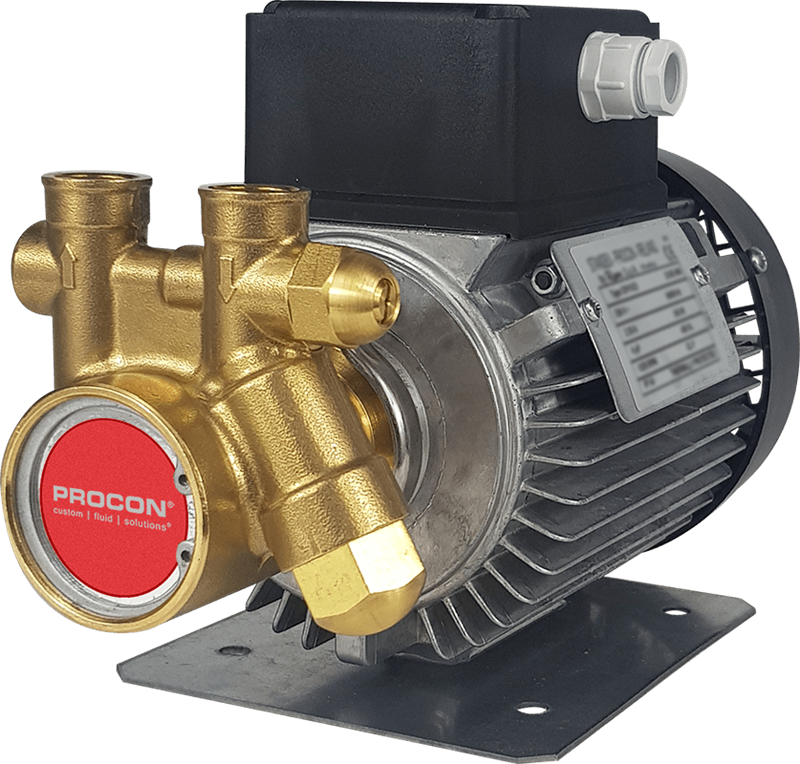

Rotary Vane Pump/Motor Assembly Series 1- 101A015F11GB717
Model #:
101A015F11GB717
Rotary Vane Brass Pump/Motor Assembly Series 1- 15GPH (45LPH), EPDM/Nitrile, External adjust- with PSC Motor 230V/115VAC, 50/60Hz, 0.33hp/0.4hp (245W/300W)
Please email [email protected] for price and availability for this item.
Typical Lead Time: 60 Days
- Consistent flow rate across variable pressures
- Self-priming (water) and maintenance-free with low vibration and pulsation characteristics
- Internal Relief Valve External adjust configuration
- Integral Strainer for debris removal from pumping fluid
- Brass Housing Material
- NPT 3/8" Inlet and Outlet Connections
- Constructed with EPDM/Nitrile Elastomers
- Flowrate of 15GPH (45LPH)*
- Fluid Operating Temperature of between -4°F to 160°F (-20°C to 71°C)
- PSC Motor 230V/115VAC, 50/60Hz, 0.33hp/0.4hp (245W/300W)
* GPH rating at 1725RPM/60Hz and LPH rating at 1450RPM/50Hz
Technical Information
Flow Rate GPH
15GPH
Material
Brass
Flow Rate LPH
45LPH
Mounting Type
Clamp-On
Standard Port
NPT 3/8"
Elastomer
EPDM/Nitrile
Seal Type
Non Balances Ceramic/Carbon
Integrated Strainer
Yes
Rotation
Clockwise
ValveConfiguration
External adjust
Drive Configuration
Double Flat
Internal Component Material
Carbon
Product Weight
13.77lb (6.25Kg)
Valve Type
Solid- Ultem
Operating Range
Min Operation Fluid Temperature
-4°F
Relief Valve Set Pressure Range
100 to 150psi (7 to 10 BAR)
Max Operating Pressure
100psi
Max Static Pressure PSI
100psi
Max Operation Fluid Temperature
160°F
Max Discharge Pressure
250psi
Max Fluid Viscosity
100cp
Wet Suction Lift
6.6ft
Dry Suction Lift
3.3ft
Max Sound Level
60dB(a)
MinSpeed
1000RPM
Max Speed
2400RPM
Fluid Acidity
6pH
Maximum Total Dissolved Solids (TDS)
5000ppm
Motor Performance
Speed
1320RPM
Power (hp)
0.03
Voltage
230V
Motor Voltage 2
115V
Motor Current
2.35A
AC/DC
AC
Motor Mount Type
Clamp-On
Motor Design
IMB3
Protection
IP54
Motor Insulation
F
Frequency
50/60Hz
Motor Type
PSC
Cooling Type
External Fan Cooled
Phase
Single Phase
Power (W)
245W
Motor Capacitor
6?F
Motor Poles
4
Capacitor Voltage Rating
450VAC
